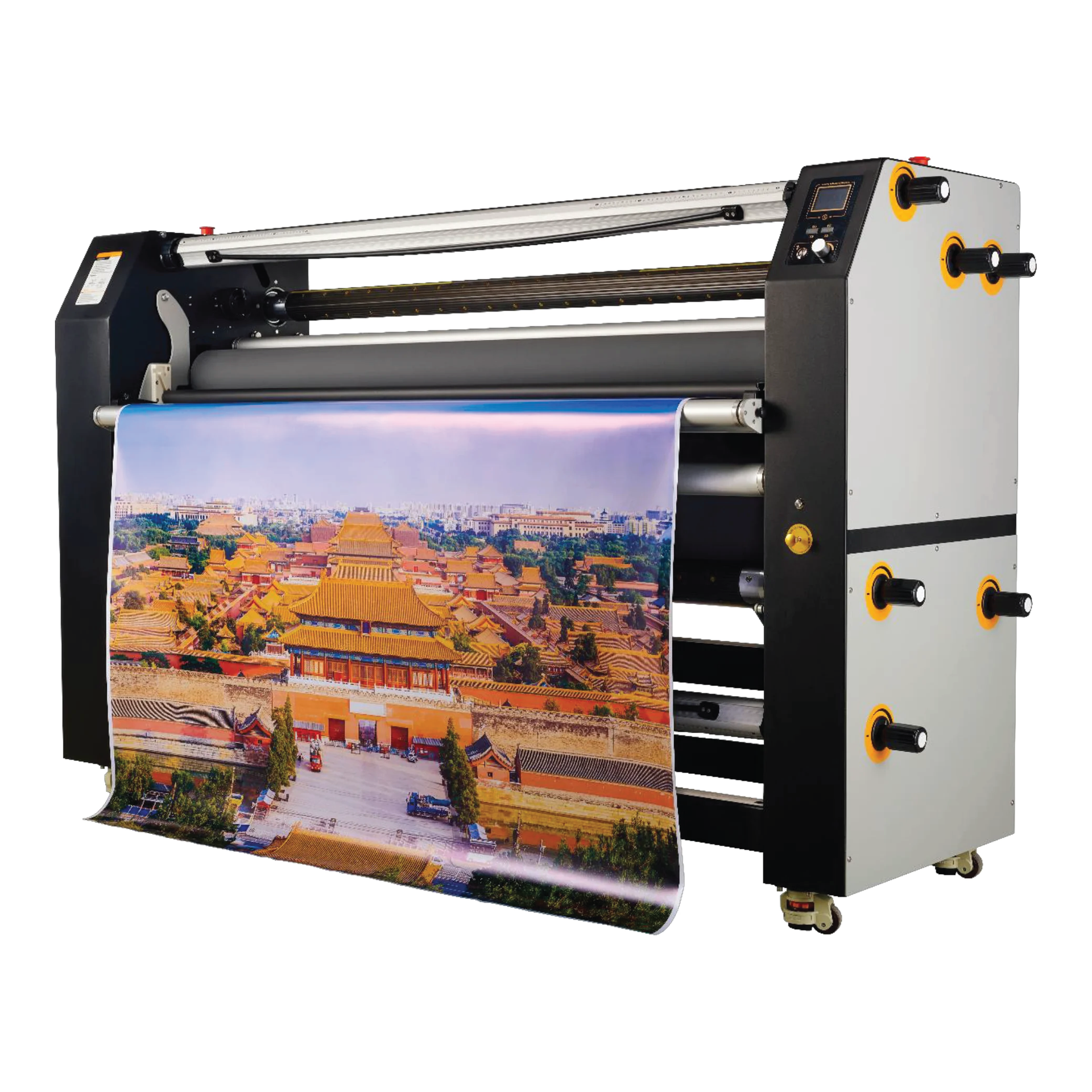

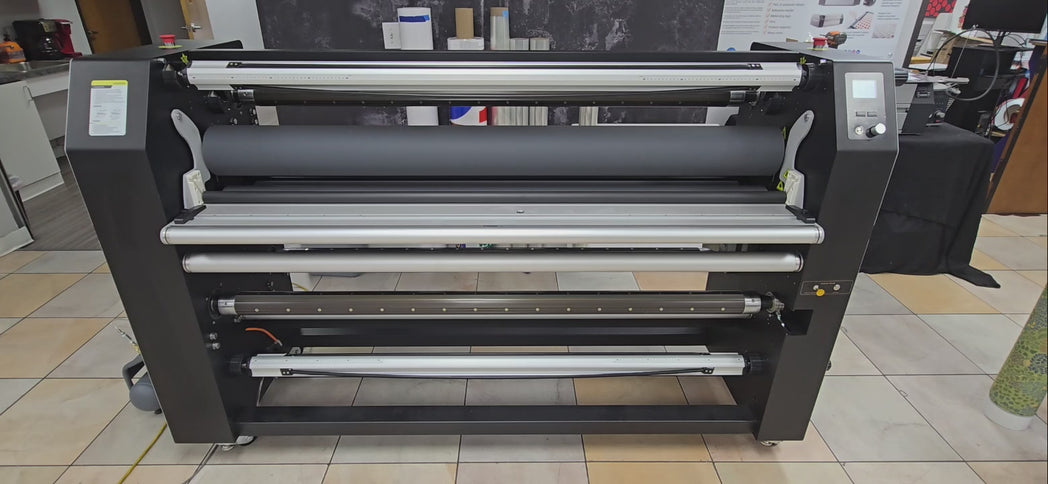

Pro1700-F1 Heat-Assisted Laminator

Industrial-Grade Laminating with SMART Precision and Vertical Slitting

See Brochure Link

The Pro1700-F1 Heat-Assisted Laminator from B&C Graphics is a high-performance, wide-format finishing solution engineered for demanding signage, packaging, and display production environments. With advanced vertical slitters, a SMART monitoring system, and ergonomic swing-in/out air shafts, this 64" laminator delivers unmatched speed, precision, and operator efficiency.

Key Features & Benefits

• SMART Monitoring System
  Real-time temperature, speed, and lamination tracking for consistent, high-quality output.

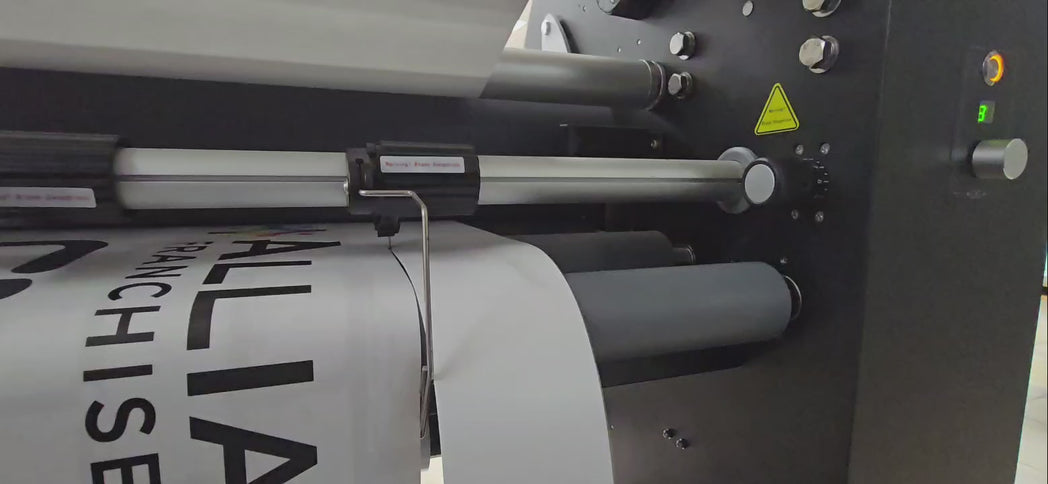

• Vertical Slitters + Rear Pneumatic Cutting Bar
  Integrated trimming tools with adjustable tungsten steel holders rated for 15,000m+ of precision cutting.
• Swing-In/Out Air Shafts
  Fast, ergonomic roll changes with pneumatic expansion—ideal for high-volume workflows.
• Dual Control Panels (Front & Rear)
  Streamlined operation with intuitive digital displays and key data visibility from both sides.
• Durable Frame & Silicon Rollers
  Heavy-duty construction with 130mm glue-free rollers for smooth, accurate lamination.
• Air Bladder Mandrels
  Secure roll handling with pneumatic unwind mandrels for fast material swaps and consistent tension.

Technical Specifications

Max Lam Width 64” Roller Silicon
Max Lam Thickness 1.1” Roller Diameter 130mm
Max Speed 40 ft/min Trimmer Holder 2 Single and 1 double Central blade
Swing in & out shafts 2 winder/1 rewinder Power 2000W
Heating Top Heat assisted N.W. 772 lbs
Max Temp 140°F Dimension (LWH) 2260x900x1530mm

Ideal Applications

• Wide-format signage and POP displays
• Packaging prototypes and short-run finishing
• Trade show graphics and retail installations
• High-speed lamination with integrated trimming

Why Choose the Pro1700-F1?

Designed for professionals who demand reliability, speed, and precision, the Pro1700-F1 is the ultimate laminating and cutting solution for modern print environments. Whether you're running a high-volume shop or scaling up your finishing capabilities, this machine is built to perform.
