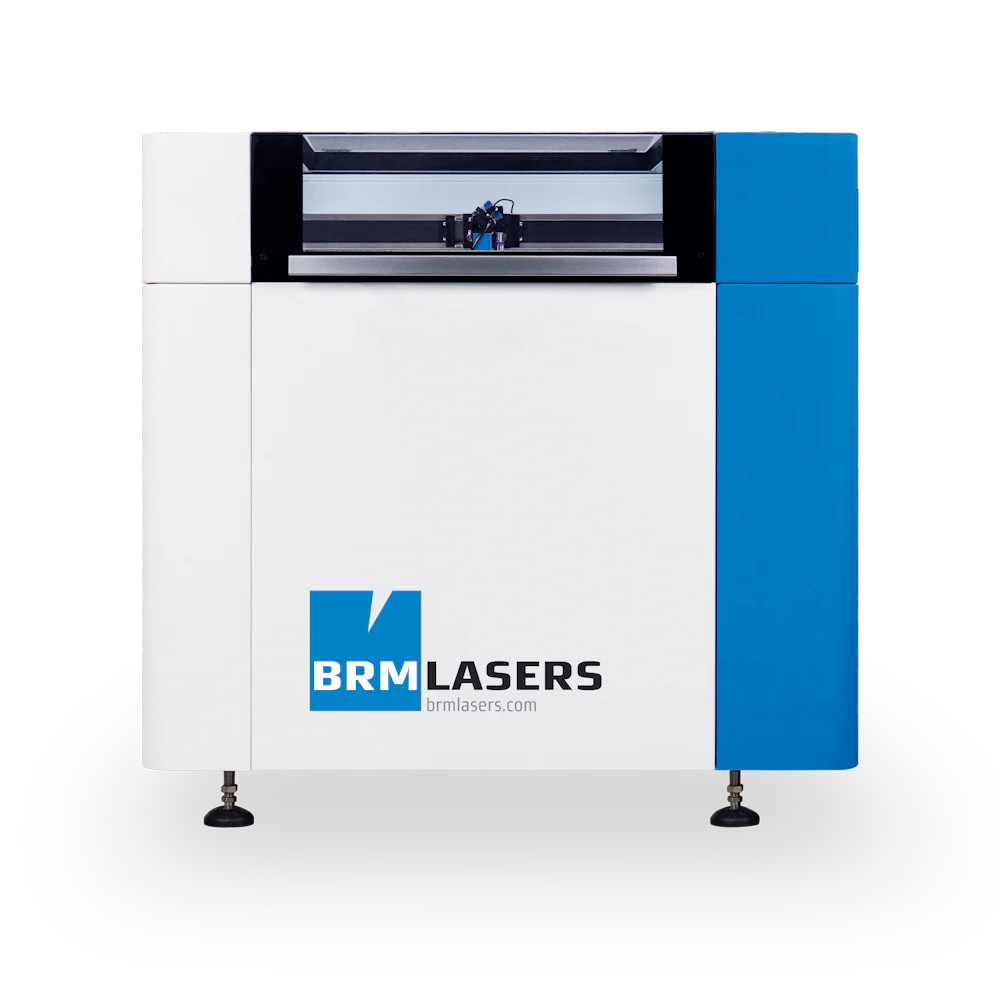

BRM Pro 600 Class 1 Co2 Laser Cabinet

Model Name: BRM Pro 600
Machine Type: Enclosed CO₂ Laser Cutter (Laser Class 1)
Working Area:

• Metric: 600 × 400 × 200 mm
• Imperial: 23.62 × 15.75 × 7.87 inches

Laser Wattage Options:

• Standard Range: 75 W – 90 W
• Extended Range (Optional): 90 W – 100 W or 130 W – 150 W

Key Features:

• Ultrasonic autofocus for precise depth control
• Red pointer for visual alignment
• Dust-free guide rails for smooth motion
• Software-controlled air valve and timed exhaust shutdown
• LightBurn software compatibility
• Dual lens kit (50.8 mm and 101.6 mm optics)
• Max cutting speed: 60 mm/s recommended
• Max acceleration: 20,000 mm/s² (X-axis)
• Accuracy: ±0.1 mm cutting, 420 dpi engraving
• Max cutting capability: ~10 mm acrylic, ~5 mm MDF at optimal power

Materials Supported:
Wood, acrylic, plastics, textiles, cardboard, leather, foam, rubber, coated metals, glass, and more
