COMAGRAV NOTUS PLUS specifications and brochure
Download the COMAGRAV NOTUS PLUS brochure (PDF)
| Working area | 2100 x 1600, 3150, 4200 or 6200 mm |
|---|---|
| Spindle configuration | Up to 13.2 kW; up to 50,000 RPM, depending on spindle |
| Maximum travel speed | 500 mm/s; optional 800 mm/s |
| Drive system | AC servo motion; double X-axis |
| Material height | Up to 100 mm in the brochure configuration |
| Tool change | Manual or optional automatic systems |
| Control | PILOT; controller and PC configuration must be confirmed with the quote |
Maximum travel speed is not a guaranteed material cutting speed. Final tooling, workholding and machine configuration depend on the material and application.
Which COMAGRAV CNC router fits your production?
MISTRAL suits compact routing and engraving work. NOTUS offers several worktable sizes for mixed routing applications. NOTUS EVO provides a 2100 x 3150 mm production format. NOTUS PLUS offers larger formats and spindle configurations up to 13.2 kW. Compare the part size, material, tooling and production workflow before selecting a system.
Compare COMAGRAV routing and digital cutting solutions or browse industrial CNC router models.
Pricing and installation questions
What determines the price?
Table size, spindle, manual or automatic tool change, vacuum system, camera registration, cutting tools, dust extraction and installation scope affect the configuration and quote. Request current pricing for your materials and job requirements.
What should I confirm before ordering?
Ask for the selected machine's electrical and compressed-air requirements, floor space, freight and rigging plan, installation scope, operator training, warranty terms, software and file compatibility, consumables, current availability and lead time. These details must be confirmed for the quoted configuration.
Can I evaluate my material before choosing tools?
Discuss a sample evaluation or demonstration with B&C Graphics. Provide the material name and thickness, part dimensions, required edge quality and expected production volume so the proposed tooling can be assessed.
Request a configuration-specific equipment quote
Tell us what you produce, your material and thickness, largest sheet or roll size, and target throughput. Ask for a material demonstration and an itemized configuration covering tooling, software, site utilities, extraction, freight, installation and training. Availability, lead time, warranty and service terms must be confirmed in the written quote.
Overview of Product

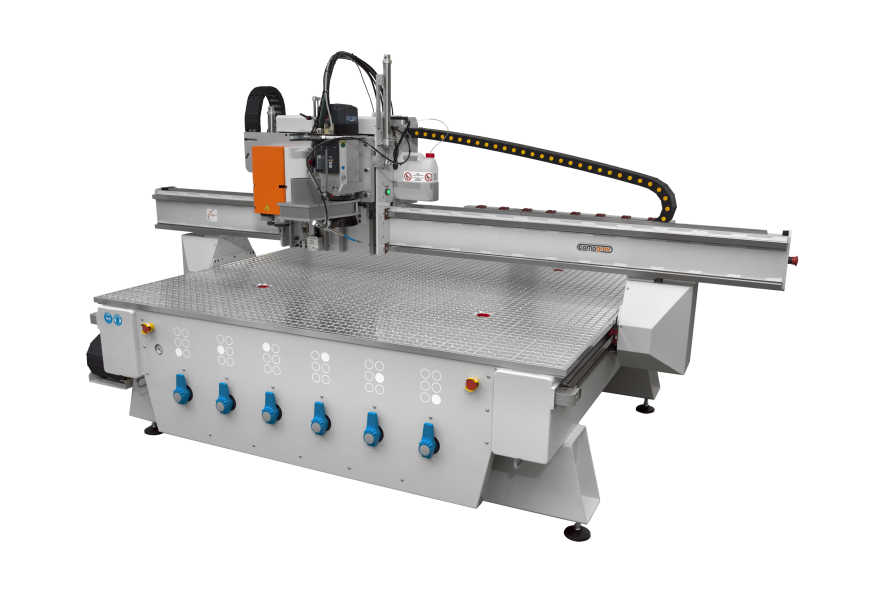

The Comagrav Notus Plus is a precision-engineered CNC servo router built to master high-speed cutting, milling, and engraving across signage, packaging, metal, and composite substrates. Featuring a rigid steel frame and Mitsubishi servo motors, it supports routing spindles up to 13.2 kW, a dual-module MULTI head, and a high-vacuum worktable for unwavering stability. Optional knives, creasers, discs, and camera systems offer deep versatility for print professionals and industrial fabricators alike.
- Available work areas up to 6200 x 2100 mm
- MULTI Head supports routing, knife cutting, engraving & creasing
- Tooling options: Oscillating knives, drag knives, cutting discs
- Camera system for precise contour cutting via RIP integration
- PILOT Advanced control with Windows PC & touchscreen interface
- Ideal for rigid media, corrugated packaging, aluminum, and prototyping
- Optional add-ons: rotary adapter, spray cooling, vertical table setup
